Description
Key Features

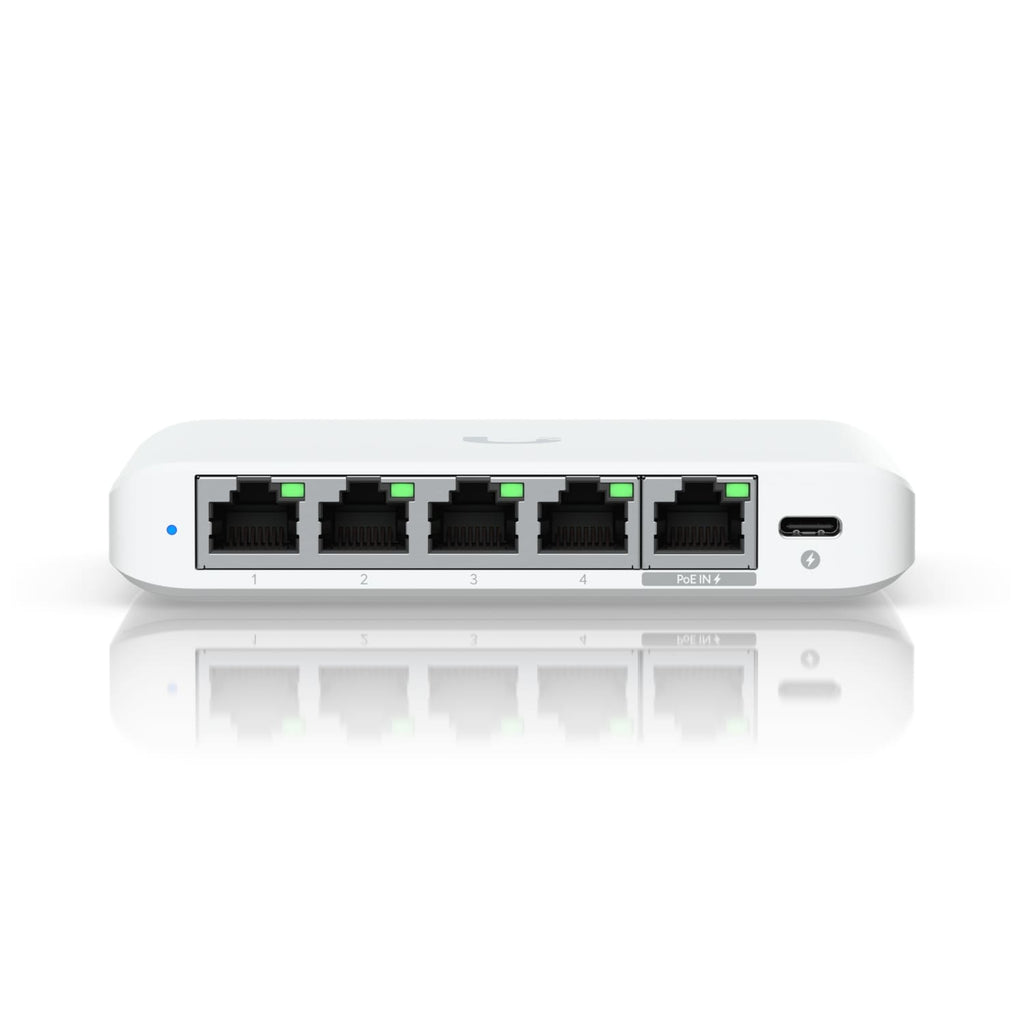

Compact, 5-port 2.5G switch that can be powered with PoE or a USB-C adapter.
High-density switching with 5 2.5 GbE RJ45 ports.
Performance designed for demanding UniFi networks, including 25 Gbps switching capacity.
Compact desktop form factor for clean installation in network cabinets or branches.
Managed with Version 8.6.9 and later for centralised UniFi monitoring and control.
Technical Specifications
Dimensions: 117.1 x 90 x 21.2 mm
Weight: 206 g
Connectivity: 5 2.5 GbE RJ45 ports
Power method: (1) USB Type-C, 5V DC, 1A; (1) PoE
Max. power consumption: 5W (AC/DC input); 6.4W (PoE input)
Switching capacity: 25 Gbps
Total non-blocking throughput: 12.5 Gbps
Forwarding rate: 19 Mpps
Form factor / mounting: Compact desktop
Operating temperature: -20 to 45° C
Operating humidity: 10 to 90% noncondensing
Certifications: CE, FCC, IC, Anatel
Application requirements: Version 8.6.9 and later
Supported VLANs: 256
MAC Address Table Size: 4,000
Warranty
1 Year
