Description
Key Features

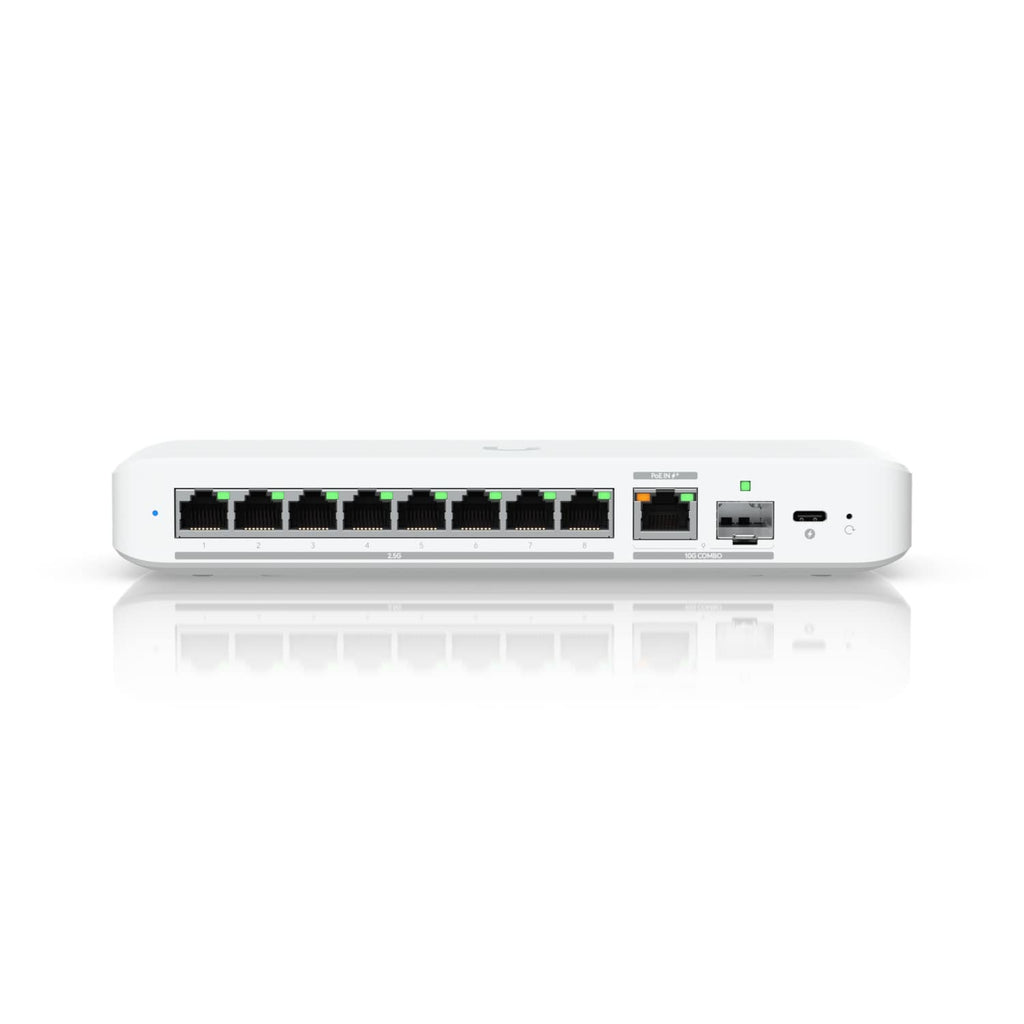

Flexible, 8-port 2.5 GbE switch with a 10 GbE RJ45/SFP+ combination uplink port that can be powered with a USB-C or PoE+ adapter.
High-density switching with 8 2.5 GbE RJ45 ports, 1 10 GbE RJ45 ports, 1 10G SFP+ ports.
Performance designed for demanding UniFi networks, including 60 Gbps switching capacity.
Compact Desktop, wall, DIN, magnetic (DIN and Magnetic are sold separately) form factor for clean installation in network cabinets or branches.
Managed with Version 9.0.114 and later for centralised UniFi monitoring and control.
Technical Specifications
Dimensions: 212.9 x 76 x 33.5 mm
Weight: 395 g
Connectivity: 8 2.5 GbE RJ45 ports, 1 10 GbE RJ45 ports, 1 10G SFP+ ports
Power method: (1) USB Type-C, 5V DC, 3A; (1) PoE+
Max. power consumption: 14W with PoE input; 14W with AC adapter input
Switching capacity: 60 Gbps
Total non-blocking throughput: 30 Gbps
Forwarding rate: 45 Mpps
Form factor / mounting: Compact Desktop, wall, DIN, magnetic (DIN and Magnetic are sold separately)
Operating temperature: -20 to 45° C
Operating humidity: 10 to 90% noncondensing
Certifications: CE, FCC, IC, Anatel
Application requirements: Version 9.0.114 and later
Supported VLANs: 256
MAC Address Table Size: 4,000
